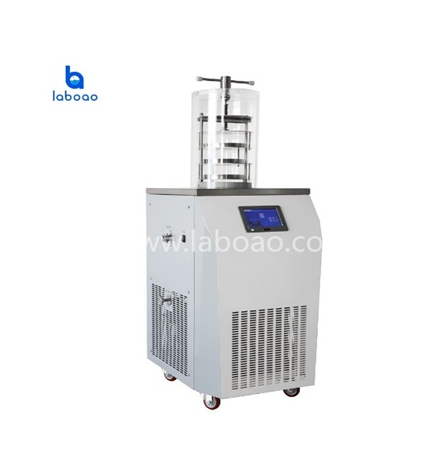

0.09㎡ Top Press Lab Freeze Dryer
Is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying before the vial’s lid unsealed. The capping device compacts the vials’ lids after freeze drying to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.
Description
| Model | LFD-18B |
| freeze drying area | 0.09㎡ |
| tray dia. | Ф200mm |
| tray numbers | 3 |
| tray spacing | 70mm |
| cold trap temp. | ≤-60℃，optional ≤-80℃ |
| cold trap depth | 400mm |
| cold trap dia. | Ф270mm |
| ice collecting capacity | 6kg/24h |
| pump speed | 4L/S |
| ultimate vacuum | ≤5pa |
| power | 1400w |
| main unit weight | 105kg |
| main unit dimensions | 630×580×970mm |
| -80℃main unit dimensions | 810×580×950mm |
| drying chamber dimensions | Ф300×540mm |
| cooling mode | by wind |
| defrosting mode | by air |
| shipping weight | 0.9L（thickness 10mm） |
| loadable vials q’ty | Ф12mm 615pcs |
| Ф16mm 345pcs | |
| Ф22mm 183pcs |
