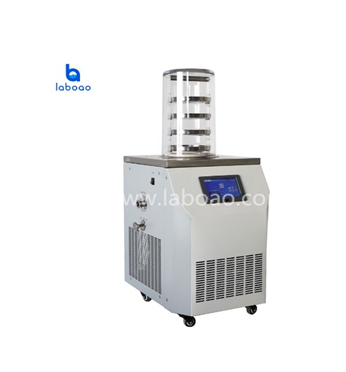

0.08㎡ Vertical Top Press Lab Freeze Dryer
Is suitable for freeze-drying experiment in laboratory. It is bench top top-press equipment.
Description
| Model | LFD-12B |
| Freeze drying area | 0.08㎡ |
| Condenser capacity | 3-4 L /24h |
| Condenser temperature | -55℃ (-80 ℃ optional) |
| Vacuum degree | < 10 Pa |
| Material tray | ф180mm, 3 layers |
| Bulk capacity | 0.8 L, 10mm thickness |
| Vial capacity Φ12mm | 560 pcs |
| Vial capacity Φ16mm | 285 pcs |
| Vial capacity Φ22mm | 165 pcs |
| Style of press | By hand |
| Cooling | Air，draughty,ambient temperature≤25℃ |
| Voltage | 220V, 50Hz |
| Host dimension | 556×460×(720+430) mm |
| Power | 750W |
| Host weight | 62 g |
